Description

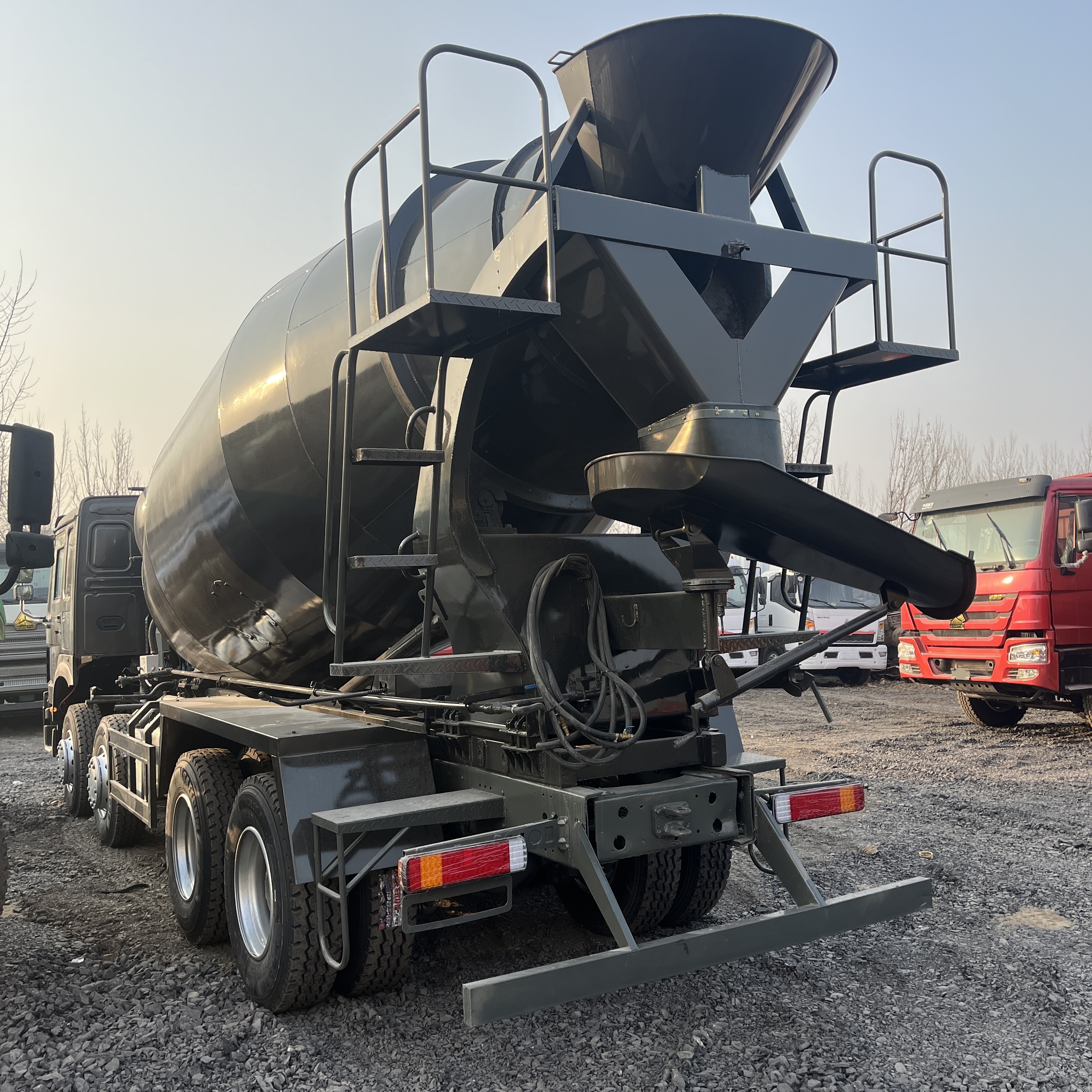

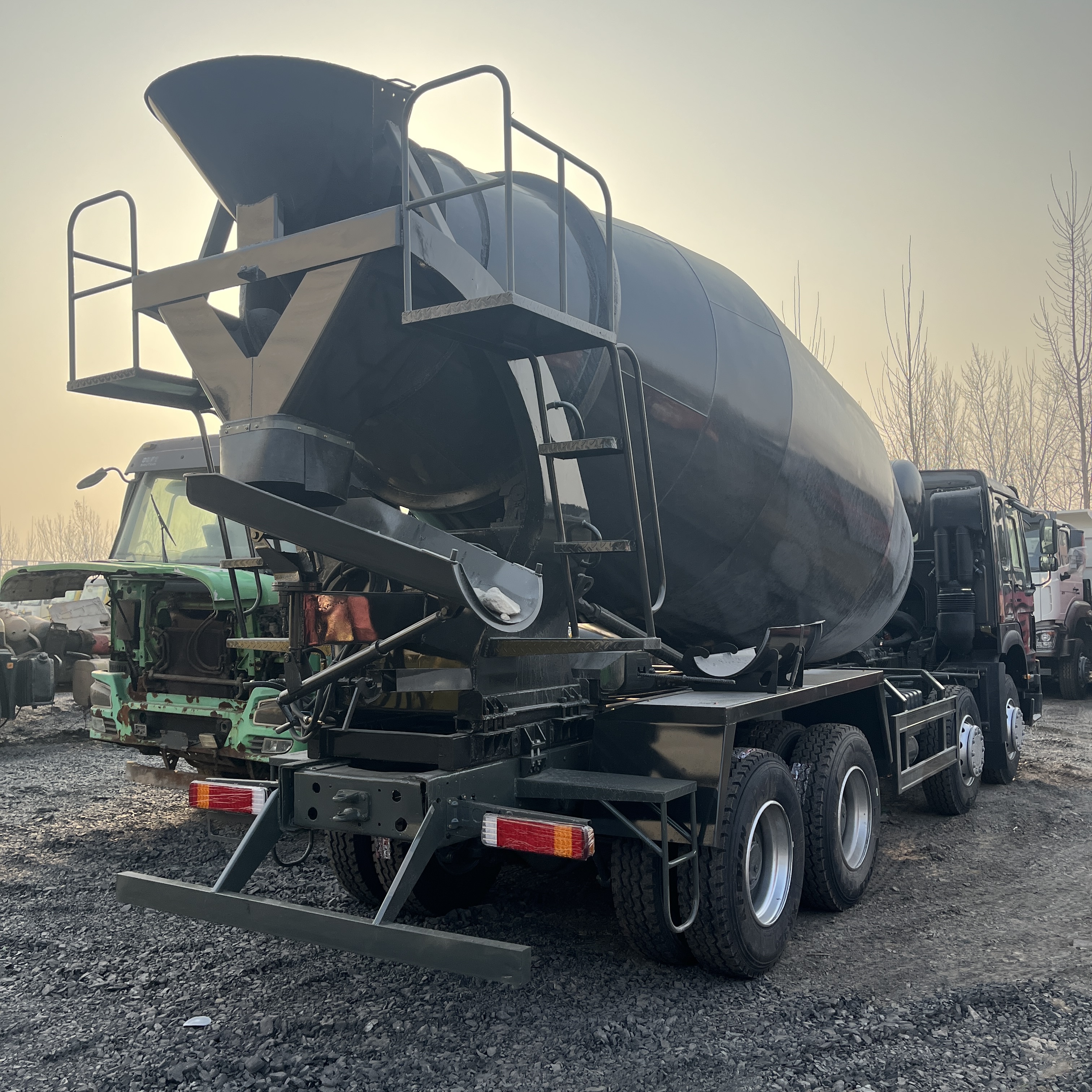

ItemSpecification**Engine**Sinotruk D10.38-50, inline 6-cylinder, 9.726 L, 380 hp (276 kW), high-pressure common rail**Transmission**Sinotruk, 10-speed manual**Drive Type**8×4 (two front steer axles + two rear drive axles)**Wheelbase**1800 + 3600 + 1350 mm**Overall Dimensions**10.82 × 2.496 × 3.98 m**GVWR**Approx. 31 tonnes**Curb Weight**Approx. 18.8–19.2 tonnes**Rated Payload**Approx. 11.7–14.3 tonnes**Body / Superstructure**Concrete mixer drum; certified mixing volume approx. 5.3–5.8 m³ (per vehicle announcement), common market drum capacity 10–12 m³**Tires**12.00R20 / 315/80R22.5, 12 pcs**Others**Rear axle ratio 5.473; leaf springs 11/11/12; max speed 80 km/h
